SHACMAN H3000 4X2 Light Dump Truck 300hp Euroll Red
Detailed Product Description
Model: SX3185MN381
Drive type: 4x2
Engine Brand: WEICHAI
Engine Model: WP10.300E22
Engine Power/(kw/HP): 208kw / 300Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Heavy Dump Truck Parameters
| Model | SX3185MN381 |
| Drive type | 4x2 |
| Dimensions | Wheelbase/(mm) | 3800 |
| Performance | Maximum speed/(km/h) | 45～60/75 |
| Ground clearance | >314 |
| Engine | Brand | WEICHAI |
| Model | WP10.300E22 |
| Power/(kw/HP) | 208kw / 300Hp |
| Maximum torque / (N.M)/rpm | 1500 N·M |
| Displacement/(L) | 9.726 L |
| Emission standard | Euro II |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake |
| Park brake | Rear wheel spring brake |
| Auxiliary brake | WEVB engine exhaust brake |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) |
| Suspension | Front | Front /rear Multi-layer plate spring |
| Rear | Front /rear Multi-layer plate spring |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 |
| Tires | Type | 11.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery |
| Cab | Type | SHACMAN H3000 Medium-length flat roof |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever mirrors, electronically controlled automatic climate control, electric window crank, manual flip, telescopic axle manoeuvre, common air filter, tank protection grille, metal bumper, two-stage pedals, 165Ah maintenance-free battery, SHACMAN logo, full English logo |
Advantages
- The SHACMAN H3000 4X2 dump truck is a popular model known for its durability and performance in the transportation and construction industries.
- The SHACMAN H3000 4X2 dump truck is equipped with a WEICHAI engine that delivers 300 horsepower (hp). WEICHAI is a well-known brand in the automotive industry, renowned for its reliability and efficiency.

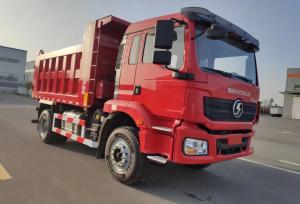

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
